GTA 6 SSD: what to buy for PS5 and Xbox Series

Rockstar still hasn't said how many GB GTA 6 will need. On PS5, you can expand storage with a compatible M.2 SSD; on Xbox Series X|S, optimized games run from internal storage or a compatible expansion card.

PS5
M.2 NVMe
Xbox Series
Expansion card
PS5 needs
Heat dissipation
GTA 6 install
Size unconfirmed

Contains affiliate links: if you buy through them, Daykyri earns a commission at no extra cost to you.

Samsung 990 PRO 4TB SSD, with and without heatsink
Samsung 990 PRO 4TB SSD, with and without heatsink

Rockstar still hasn’t published GTA 6’s install size. What we do know is where the game ends up: installed on the console. The physical edition contains a download code rather than a disc. Rockstar Store

On PS5, you can add an M.2 SSD. Xbox Series X|S uses its own expansion-card system for extra storage that can run optimized games directly.

What Sony requires

Sony supports M.2 NVMe PCIe Gen4 x4 SSDs from 250 GB to 8 TB. It recommends 5,500 MB/s or faster sequential reads, requires effective heat dissipation and limits the total thickness to 11.25 mm with the cooling structure fitted. PlayStation

All three drives in this guide meet those requirements in their heatsink versions.

Pay attention to that version. The product name alone isn’t enough when the same SSD can be sold with or without a heatsink.

Speed is already covered

Kingston advertises up to 7,300 MB/s for the FURY Renegade. The WD_BLACK SN850X also reaches 7,300 MB/s. Samsung advertises 7,450 MB/s for the 990 PRO. That creates an easy ranking on a spec sheet. On PS5, it is a weak way to choose between them. Kingston Technology Company

Digital Foundry tested drives ranging from roughly 3,200 MB/s to 7,000 MB/s alongside the PS5’s internal storage. Even in Ratchet & Clank: Rift Apart, which puts unusual pressure on storage, it found virtually no gameplay-performance difference between them. Cold boots moved by only a few seconds. Large file transfers showed a much wider gap. Tom’s Hardware

One of those test drives sat below Sony’s recommended 5,500 MB/s. That does not make it our buying recommendation. Follow Sony’s specification. The useful lesson is narrower: a large gap in advertised sequential speed doesn’t automatically become a large gap while playing.

A direct SN850X versus Samsung 990 PRO comparison reaches the same point. In the PS5 read-speed test, the difference between the two flagship drives is negligible. Gaming PC Builder

Tom’s Hardware’s September 2026 PS5 guide makes the distinction even clearer: it names the SN850X its best overall PS5 SSD and the 990 PRO its fastest. Tom’s Hardware

What the spec sheet doesn’t tell you: once a drive comfortably clears what PS5 needs, another 150 MB/s on the box matters less than capacity, price per terabyte, heatsink and warranty.

Budget: Kingston FURY Renegade with heatsink, 1 TB

Kingston advertises up to 7,300 MB/s and sells a heatsink version designed for PS5. The 1 TB heatsink model is 10.5 mm thick, within Sony’s 11.25 mm limit. Kingston Technology Company

This is the smallest upgrade in the guide.

It makes sense if you’re creating room for GTA 6 and keep a relatively short library installed. You’ll hit the delete button sooner than with 2 or 4 TB, but you’re already in the same useful PS5 performance range as the more expensive options.

The lower price mainly buys less capacity.

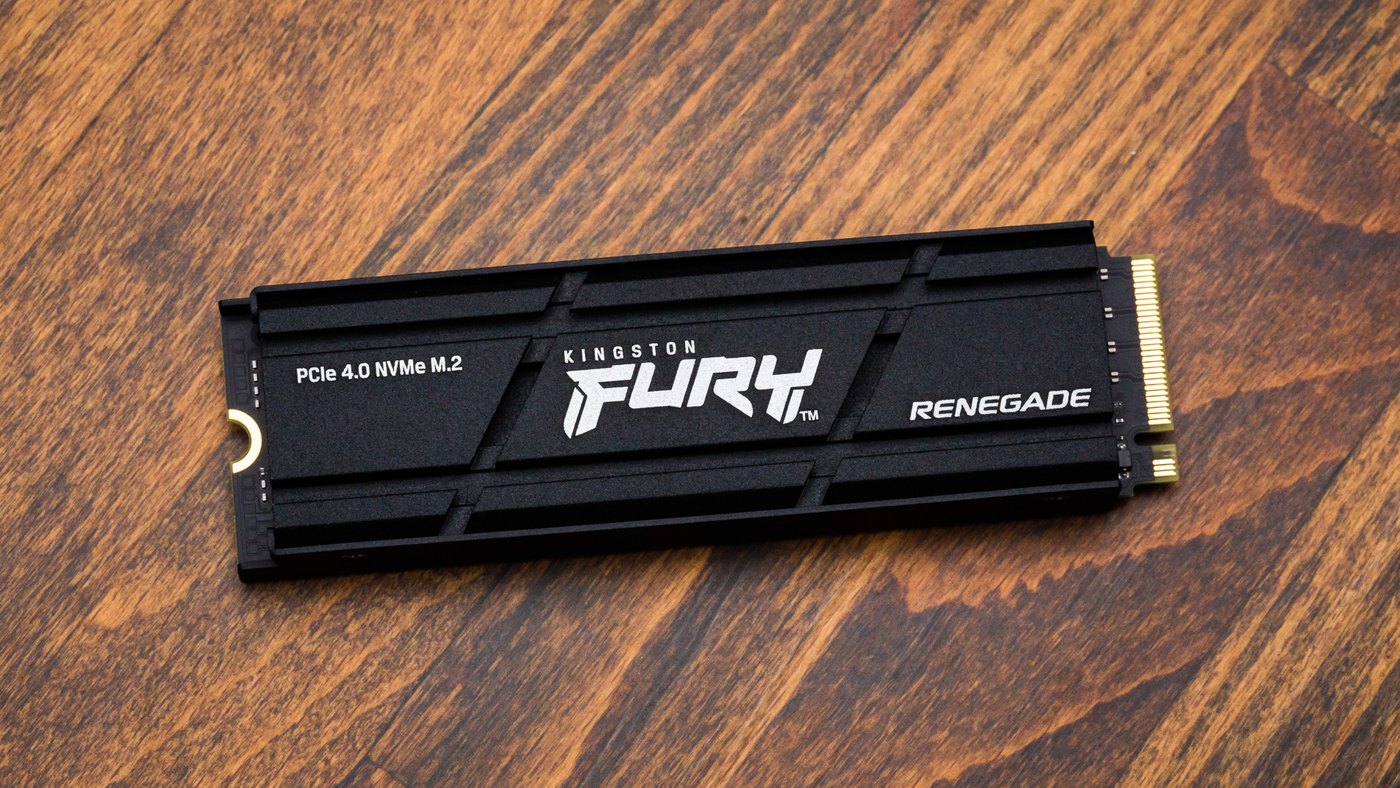

Kingston FURY Renegade M.2 SSD with heatsink

See Kingston FURY Renegade with heatsink on Amazon.

Midrange: WD_BLACK SN850X with heatsink, 2 TB

The SN850X keeps the advertised 7,300 MB/s read speed, and Sandisk lists the heatsink model as PS5-compatible. It also carries a five-year limited warranty. Sandisk

Tom’s Hardware still ranks it as its best overall PS5 SSD in September 2026, pointing to performance, its large consistent SLC cache and warranty. Tom’s Hardware

The practical reason to step up from 1 TB is space.

More large games can stay installed at the same time, and you spend less time deciding what has to go.

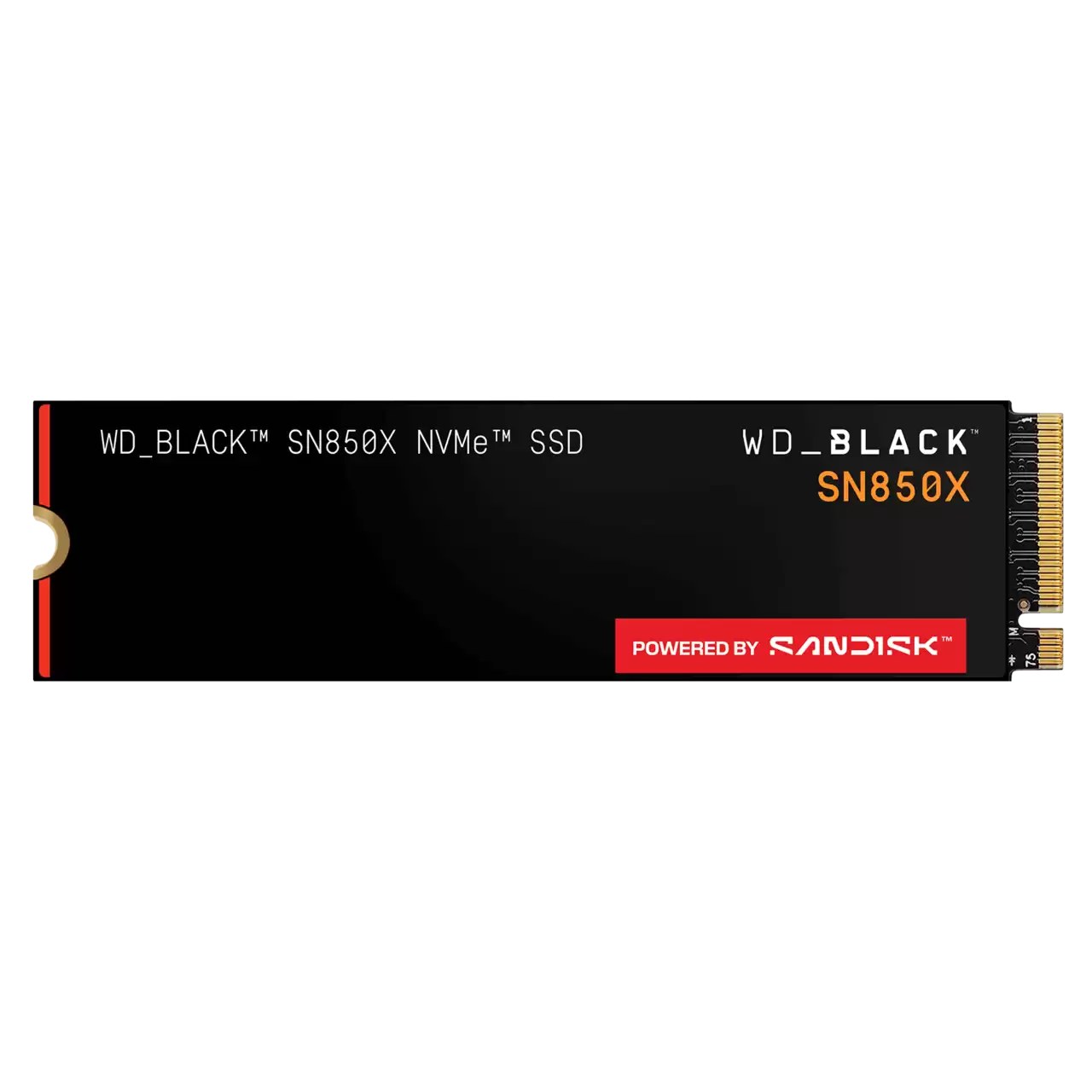

WD_BLACK SN850X NVMe M.2 SSD

See WD_BLACK SN850X with heatsink on Amazon.

High end: Samsung 990 PRO with heatsink, 4 TB

Samsung advertises 7,450 MB/s reads and 6,900 MB/s writes for the 4 TB 990 PRO with heatsink, with PS5 compatibility. Samsung India

That is the highest speed figure in this guide. It isn’t the reason I’d buy the 4 TB model for a PS5.

Four terabytes buys a much larger installed library.

Rockstar hasn’t announced any GTA 6-specific advantage for running the game from an SSD that exceeds Sony’s recommendation by a slightly wider margin.

At 4 TB, you’re paying to stop making space so often.

Samsung 990 PRO 4TB, with and without heatsink

See 4 TB Samsung 990 PRO with heatsink on Amazon.

On Xbox Series X|S: expansion card

Xbox takes a different route.

The Storage Expansion Card uses the console’s dedicated expansion port and is designed to maintain the same peak speed and performance as the internal SSD. Optimized Series X|S games can run directly from it. XBOX Wire

Windows Central describes the experience as effectively plug and play: insert the card, the console detects it and game performance and loading stay on par with internal storage. Cost remains the obvious trade-off. Windows Central

That matters most on the 512 GB Series S. The console has the lowest entry price, but if you later need more fast storage, the expansion becomes part of the real setup cost.

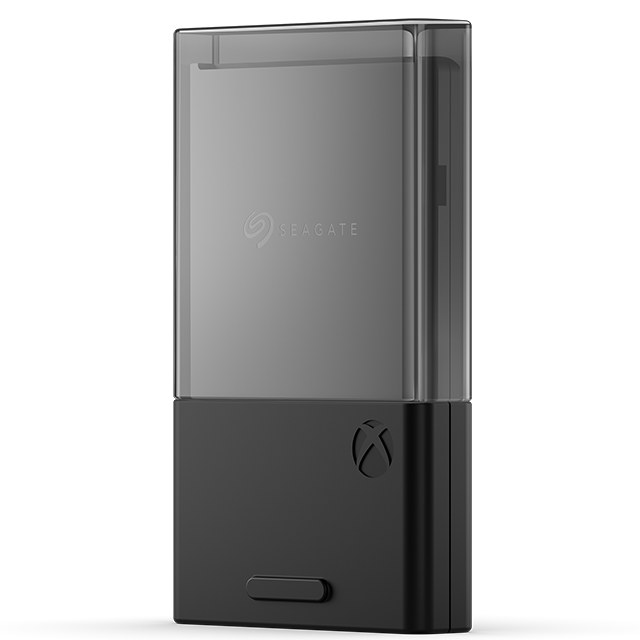

Seagate Storage Expansion Card for Xbox Series X|S

See Seagate Expansion Card for Xbox Series on Amazon.

Which capacity to choose

One GTA 6 number is still missing: the install size.

On PS5, 1 TB is the smallest upgrade in this guide. At 2 TB, more large games can stay installed. The 4 TB option is for a much bigger library.

On Xbox, start with the free space you already have. A 512 GB Series S reaches the storage conversation sooner than the 1 TB models.

I wouldn’t buy several terabytes because an unofficial GTA 6 size estimate told me to.

Wait until storage is the problem. Then buy the capacity that fixes it.

What isn’t confirmed

Rockstar hasn’t published GTA 6’s install size for PS5, Xbox Series X or Xbox Series S.

It hasn’t said whether launch will require an additional download or how large that download would be.

There is no confirmed GTA 6 performance advantage from choosing a 7,450 MB/s SSD over a good compatible 7,300 MB/s drive.

Once Rockstar, PlayStation Store or Microsoft Store publishes the final install size, that can change which capacity makes the most sense.

This guide is part of GTA 6 gear, alongside the console, screen, controller, audio and streaming guides. Daykyri

Sources

Primary sources: Rockstar Store for GTA 6’s digital distribution; PlayStation Support for M.2 SSD requirements; Xbox for the Storage Expansion Card; Kingston, Sandisk and Samsung for drive specifications. Rockstar Store

Independent testing: Digital Foundry via Tom’s Hardware for the PS5 storage-speed tests; Gaming PC Builder for SN850X versus 990 PRO; Tom’s Hardware for its September 2026 PS5 SSD picks; Windows Central for its Expansion Card testing. Tom’s Hardware
